SANY SCC750 Crawler Crane 75ton Crawler Crane

FOB Reference Price:Get Latest Price
$180,000.00 - $240,000.00 / Unit | 1 Unit/Units (Min. Order)
Max. Lifting Load:
75ton
Model Number:
SCC750
Lead Time:
Quantity(Units) 1 - 10 >10
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Max. Lifting Height:
63M
Warranty:
1 year
Feature:
Other
Condition:
New
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts
Place of Origin:
China
Brand Name:
Sany
Certification:
CE ISO etc
Application:
Various Applocation
Rated Loading Capacity:
75ton
Rated Lifting Moment:
1080N m/1500r/min
Span:
12-57m
Applicable Industries:
Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Construction works , Energy & Mining
Name:
Sany
Model:
SCC750
Type:
Crawler crane
Rated Loader:
75ton
Origin:
China
Max lifting capacity:
63m
Slewing speed:
0~2.5 rpm
Travel Speed:
0~1.7 km/h
Output power:
212/2000 kW/rpm
Color:
Yellow
Supply Ability
Supply Ability:
1000 Unit/Units per Month
Packaging & Delivery
Packaging Details
nude package
Port
Shanghai Qingdao Tianjin etc
Lead Time :
Quantity(Units) 1 - 10 >10
Est. Time(days) 10 To be negotiated







Sany 75ton crawler crane scc750


Superior Performance

  • Strong Power Supply

    Import inline six-cylinder, water-cooled turbo engine; with the rated power of 179kW@2200rpm, the crawler crane delivers powerful force, and complies with Tier 2 emission standard.

  • Powerful Lifting Capacity

    Its large chassis design ensures excellent machine performance and stability within 360°rotation. The maximum lifting capacity of boom is 75t; maximum lifting torque is 71tx4m. For the fixed jib, the maximum lifting torque is 6.7tx22m. The rope diameter of main/auxiliary hoisting devices is 20mm and the rated single rope pull of main/auxiliary winch is 7t.

  • Excellent Operation

    The crane's functions including load sensing, ultimate load regulation and electrohydraulic proportional dead slow control make each motion controlled, smooth and stable. Outmost layer line speed of main and auxiliary lifting winches is 120m/min andthat of luffing winch is 100m/min.



Safety and Reliability

  • Safe Control System

    Switch between two operation modes: working and assembly mode. It features an electronic level gauge, machine-leaving stop action, emergency electrical control, and a complete set of safety and monitoring devices. No need for recalibration, the load moment limiter makes the equipment safer and saves your operating time.

  • Reliable Function Guarantee

    Substantial safety margin in structural design, load sensitive control hydraulic system, hydraulic key components (pumps, valves, motors, and reducers) and advanced technology of renowned brands ensure the crane's stability and reliability. The control system runs well even in extreme weather and region. The sensor is protected against lightning strike, and the entire machine is closed wired to a waterproof / dust-proof protective grade of up to IP65.



High Return & Low Cost

  • Optimized Transportation

    With telescopic crawler, the maximum transportation width of whole machine is 3.36m, allowing it to be transported freely, thus reduce the transportation costs for you.

  • Flexible Configurations

    The crawler crane offers you diverse operating conditions with configurations of boom and fixed jib. The free fall winch is optional for main and auxiliary lifting winches.

  • Convenient Maintenance

    It takes no more than 10min/person to adjust, 30min/person for daily maintenance and 2h/person to repair the machine. The complete set of fault self-diagnosis and inquiry system is configured, thus reducing the equipment handling time; GPS remote monitoring system is optional for easy maintenance and management.

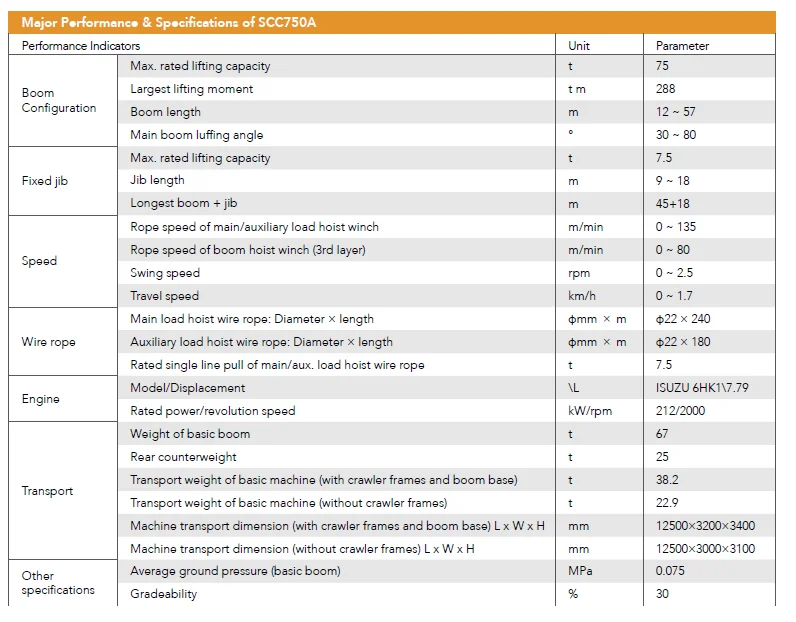

  • ModelSCC750
    Boom Operating ConditionMax. rated capacity75t
    Boom length13~52m
    Boom luffing angle30~80°
    Max.rated lifting moment284t.m
    Working SpeedRope speed of main and auxiliary winches0~120m/min
    Rope speed of luffing winch0~57m/min
    Swing speed0-3rpm
    Travel Speed0-1.2km/h
    EngineModelQSC8.3-C260
    Rated  Power179/2200kw/rpm
    TransportationCrane Weight63t
    Counterweight24t
    Max transport weight of single part37.3t(with boom base,without central and rear counterweight)

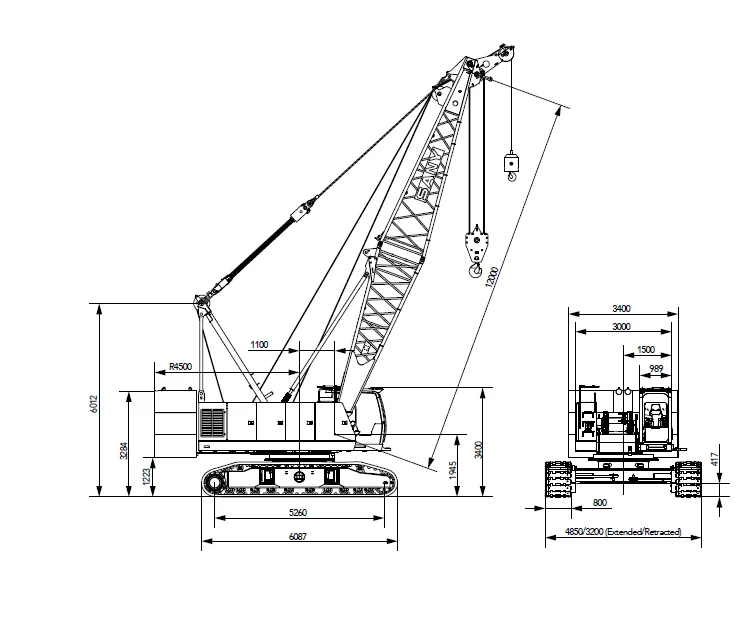

    Max transport dimensions12300×3360×3300mm
    Average ground pressure0.073MPa
