Shantui Hydraulic Single Drum Compactor Vibratory SR10 SR12 SR16 SR18 SR20 Road Rollers
- Static Linear Pressure:
- 332 n/cm
- Model Number:
- SR14 SR14MA
- Engine:
- Diesel Engine Weichai
- Lead Time:
-
Quantity(Units) 1 - 20 >20 Est. Time(days) 10 Negotiable
- Type:
-
Vibratory Roller, Single Drum Roller
- Weight:
-
10120/ 10950Kg
- Power:
-
82KW
- Engine Brand:
-
Weichai
- Applicable Industries:
-
Machinery Repair Shops, Manufacturing Plant, Farms, Construction works , Energy & Mining
- After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
- Local Service Location:
-
Egypt, Viet Nam, Philippines, Saudi Arabia, Indonesia, Mexico, Thailand, Malaysia, Kenya, Argentina, South Korea, Chile, Algeria, Romania, Bangladesh, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
- Showroom Location:
-
None
- Condition:
-
New
- Travel Speed:
-
0-10km/h
- Grade Ability:
-
48%
- Place of Origin:
-
China
- Brand Name:
-
Shantui
- Dimension(L*W*H):
-
5957*2305*3191mm
- Certification:
-
CE ISO etc
- After-sales Service Provided:
-
Free spare parts, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
- Warranty:
-
1 Year
- Hydraulic Pump Brand:
-
Import
- Hydraulic Valve Brand:
-
Import
- UNIQUE SELLING POINT:
-
High operating efficiency
- Drum:
-
Single Drum Roller
- Exciting Force:
-
OTHER
- Machinery Test Report:
-
Provided
- Video outgoing-inspection:
-
Provided
- Marketing Type:
-
Ordinary Product
- Warranty of core components:
-
1 Year
- Core Components:
-
Pressure vessel, Motor, OTHER, Bearing, Gear, PLC, Pump, Engine, Gearbox
- Name:
-
shantui roller
- Model:
-
SR14 SR14MA
- Engine:
-
Shangchai SC4H130G2
- Rated power (kW):
-
95/130
- Working width (mm):
-
2130
- Total weight (kg):
-
14000
- Theoretical gradeability (%):
-
30
- Static linear load (N/cm):
-
332
- Centrifugal force (high/low) (kN):
-
335
- Supply Ability:
- 1000 Unit/Units per Month
- Packaging Details
- nude package
- Port
- Shanghai Qingdao Tianjin etc
- Lead Time :
-
Quantity(Units) 1 - 20 >20 Est. Time(days) 10 To be negotiated
Online Customization
Shantui Hydraulic Single Drum Compactor Vibratory Road Rollers

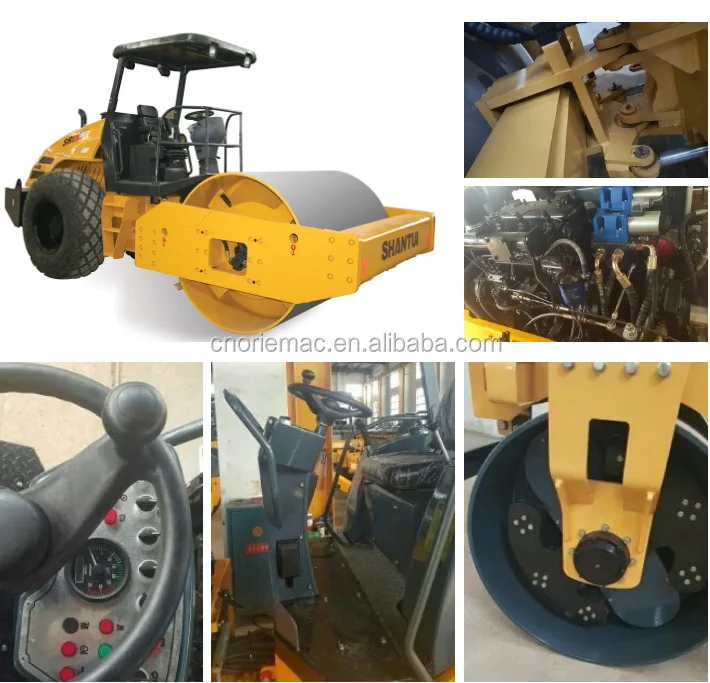

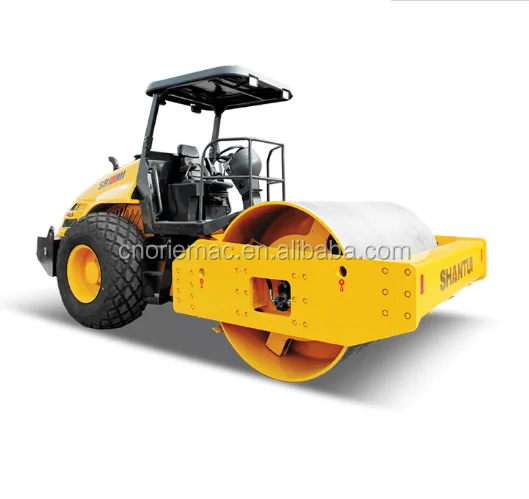

SR14 SR14MA Single-drum vibratory compactor road roller adopts the full-hydraulic drive, articulated frame, and stepless speed change and features high compacting performance to provide the user with outstanding reliability and durability. This product is suitable for the high density compacting of various clayed and non-clayed materials.
Power system
Shangchai engine (output power: 95kw) features excellent performance and powerful dynamic, ensuring the best compaction and good construction quality.
Vibration system
The drum design absorbs international vibration concept and advanced manufacturing process, ensuring perfect arc of the drum;
Vibration bearing, pump and motor are supplied by well-known manufacturers, ensuring consistent frequency, amplitude and exciting force so as to ensure construction quality.
Cab
Elegant streamlined front frame provides broad view of sight to the outer edge of front drum and front half part of the machine, which ensures safe operation.
Single gear-shifting lever increases operator’ efficiency and relaxes the operator;
Comfortable and tough imported seat, retractable safety belt and rubber shock absorber that relaxes the operator;
The traveling system provides power to the front and rear drums to ensure excellent traction;
Single gear-shifting lever is easier for the operator to choose desired direction and proper speed;
High quality
The driving system composed of single pump and double motors ensures excellent performance;
The spray system adopts three-level filtering to avoid blockage;
The 4 scrapers of front and rear drums are made of special materials to prolong scraping time, ensure clean drum and reduce maintenance cost;
Service and maintenance
The engine hood is light and can open to a large degree with the help of the column;
All maintenance locations are accessible to ensure quick service and cut short shutdown time;
Performance Parameters
MODEL | SR14MA | SR18M-2 | SR20MA | SR22MA | SR26M-3 | |
Operating weight (kg) | 14000 | 18000 | 20000 | 22000 | 26000 | |
Axle load, front (kg) | 7000 | 9000 | 10000 | 11000 | 13000 | |
Static linear load, front/rear (N/cm) |
332 | 420 | 463 | 490 | 572 | |
Working width (mm) | 2130 | 2140 | 2140 | 2140 | 2170 | |
Minimum turning radius (mm) | 6050 | 6100 | 6100 | 6100 | 6450 | |
Drum diameter (mm) | 1500 | 1550 | 1550 | 1550 | 1600 | |
Vibration frequency, high amplitude/ low amplitude (Hz) |
30/30 | 28/32 | 28/32 | 28/32 | 28/32 | |
Rated amplitude,high/low (mm) | 1.73/0.87 | 2.0/1.0 | 2.0/1.0 | 2.0/1.0 | 2.0/1.0 | |
Centrifugal force, high/low (KN) | 335/190 | 355/210 | 395/230 | 404/280 | ||
Steering angle (°) | ±35 | ±36 | ±35 | ±35 | ±35 | |
Oscillating angle (°) | ±12 | ±12 | ±12 | ±12 | ±12 | |
Maximum climbing ability (%) | 30 | 30 | 30 | 30 | 30 | |
Engine model |
Shangchai SC4H130G2 |
6BTA5.9-C155 |
Shangchai SC8D175 |
Shangchai SC8D185 |
Shangchai SC8D190.2G2 |
|
Rated power (kW) | 95/130 | 114 | 128 | 136 | 140 | |
Rated speed (rpm) | 2000 | 2000 | 2000 | 2000 | 2000 | |
Padfoot, number | - | - | - | - | - | |
Height of the padfoot (mm) | - | - | - | - | - | |
Overall length (mm) | 5957 | 5990 | 6229 | 6229 | 6442 | |
Overall width (mm) | 2305 | 2370 | 2345 | 2345 | 2432 | |
59 Overall height (mm) | 3191 | 3215 | 3180 | 3180 | 3314 |
