Oriemac XS143J 14 Ton Mini Road Roller Compactor
-
>=1 Sets
$30,000.00
- Static Linear Pressure:
- 322N/cm
- Model Number:
- XS143J
- Engine:
- 92kw
- Samples:
- Lead Time:
-
Quantity(Sets) 1 - 15 >15 Est. Time(days) 10 Negotiable
- Customization:
-
Customized logo (Min. Order: 1 Sets)Customized packaging (Min. Order: 1 Sets)
More
Graphic customization (Min. Order: 1 Sets) Less
- Type:
-
Vibratory Roller, Water cooled, Pressurized
- Weight:
-
14 Ton
- Power:
-
92kw
- Engine Brand:
-
Imported
- Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
- After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
- Local Service Location:
-
Viet Nam, Philippines, Indonesia, Algeria
- Showroom Location:
-
Viet Nam, Philippines, Indonesia, Algeria
- Condition:
-
New
- Travel Speed:
-
0~10.5km/h
- Grade Ability:
-
30%
- Place of Origin:
-
Jiangsu, China
- Brand Name:
-
Oriemac
- Dimension(L*W*H):
-
6200*2340*3200mm
- Certification:
-
CE/ISO9001
- After-sales Service Provided:
-
Free spare parts, Video technical support, Online support, Field installation, commissioning and training
- Warranty:
-
1 Year
- Hydraulic Pump Brand:
-
Imported
- Hydraulic Valve Brand:
-
Imported
- UNIQUE SELLING POINT:
-
Reinforced structural parts
- Drum:
-
Single Drum Roller
- Exciting Force:
-
50KN
- Machinery Test Report:
-
Provided
- Video outgoing-inspection:
-
Provided
- Marketing Type:
-
New Product 2020
- Warranty of core components:
-
1 Year
- Core Components:
-
Pump, Engine, Gearbox
- Product name:
-
XS143J 14ton Mini Road Roller Compactor
- Engine model:
-
Shanghai Diesel Engine D4114
- Rated engine speed:
-
2,200r/min
- Min external turning radius:
-
6800mm
- Vibration frequency:
-
28Hz
- Engine oil consumption:
-
230g/kW.h
- Hydraulic oil tank capacity:
-
170L
- Fuel tank capacity:
-
180L
- Supply Ability:
- 300 Set/Sets per Month

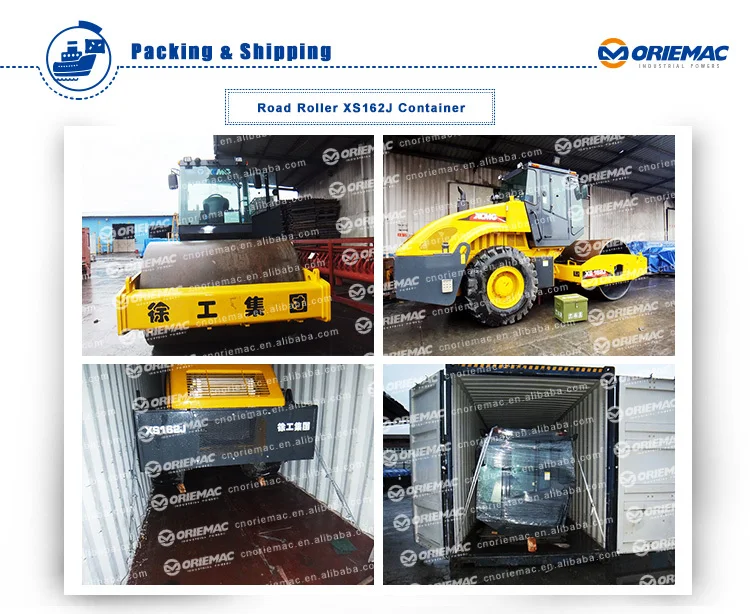

- Packaging Details
- Nude package.
- Port
- shanghai
- Lead Time :
-
Quantity(Sets) 1 - 15 >15 Est. Time(days) 10 To be negotiated
Online Customization

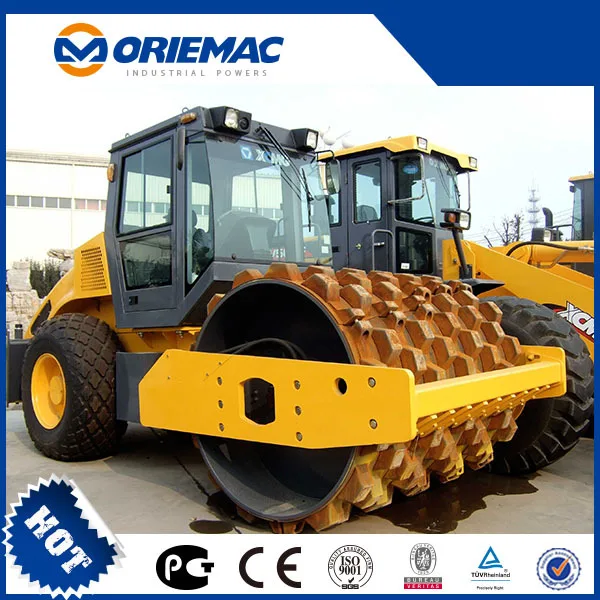

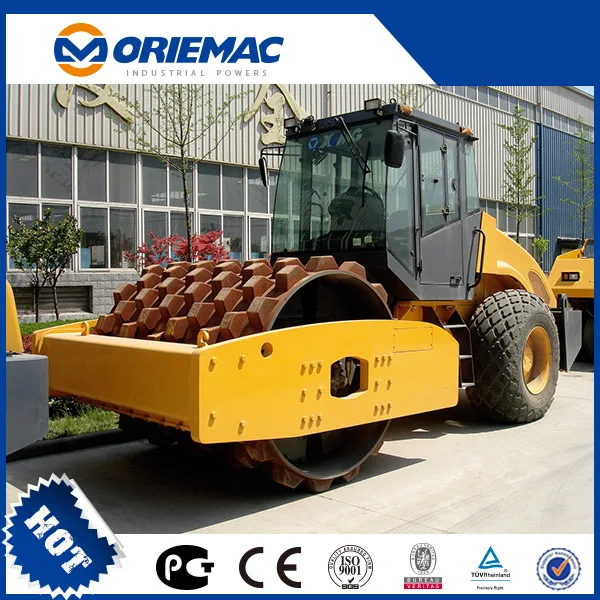

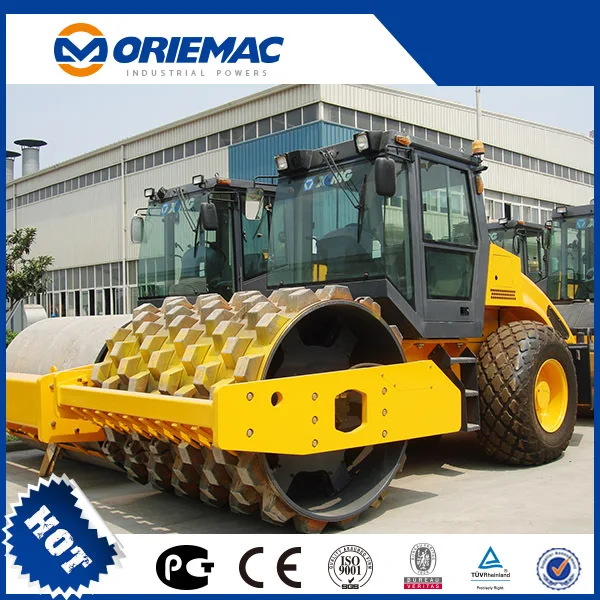

Oriemac XS143J 14ton mini road roller compactor
Contact Person: Ms. Phyllis
whatsApp/Tel/wechat:+86 15737137170
skype: wang.phyllis01
QQ:530090438
XS143J/XS163J/XS183J vibratory compactor is a kind of heavy duty self-propelled vibratory compactor. It can effectively compact various soil layers and rock fill, and can be applied to the constructions of modern freeways, airports, embankment fill, ports, dams, railways, mines, etc.
Performance feature
The spacious and bright cab features wide view and comfort.
Simple operation
The humanity instrument panel has a reasonable layout, all the control buttons are clear at a glance.
Adopt the gearbox with synchronizer, which is easy to operate.
The special compactor drive axle has the function of preventing slipping, featuring strong traction.
Reliable and durable hydraulic system
The standard configuration includes imported open gear pump and motor. The optional configuration includes closed hydraulic vibration system, imported piston pump, motor (16t, 18t). All those have a long service life, supplying stable start-oscillation and oscillation stop and high compacting quality.
Energy-saving and environmental friendly power
Shanghai Diesel Engine 114 series water-cooled engine has low noise, meeting the emission standard of European I. The maintenance-free battery can be started easily and work smoothly in low temperature.
High efficient and reliable vibratory compacting system
Unique drum structure features good rigidity and intensity. The bearing adopts short cylindrical bearing, featuring high rotary speed limit and strong bearing capacity. The left vibration chamber and right vibration chamber are symmetrical, avoiding the polarization of the drum.
The vibratory bearing can be lubricated when the compactor travels, which is simple and convenient, ensuring a quite low lubricating system failure rate.
Adopt the numerical control blanking, numerical control plate rolling, numerical control bender, and numerical control horizontal machining center to ensure the precision of the whole machining.
Optional configuration

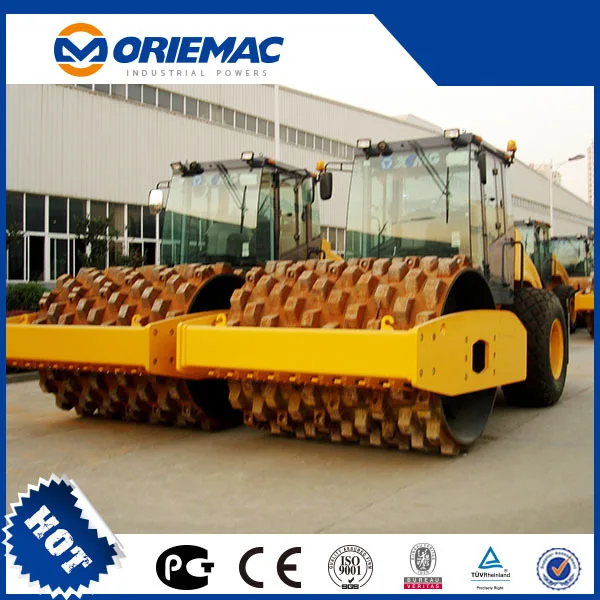

The integral convex block drum, split convex block drum, and the cab with air conditioning.
Convenient maintenance
The engine cover is easy to open, and the opening angle is large, which make the maintenance part accessible.
The high positioned air intake prolongs the maintenance interval of the air filter.
Parameter—XS143J Road Roller
Model |
Unit |
XS143J |
Operating weight |
kg |
14000 |
Weight on front drum |
kg |
7000 |
Static linear pressure |
N/cm |
322 |
Speed range |
km/h |
|
Speed I |
2.7 |
|
Speed II |
4.8 |
|
Speed III |
10.5 |
|
Theoretical gradeability |
% |
30 |
Min. external turning radius |
mm |
6800 |
Steering angle |
° |
±30 |
Oscillating angle |
° |
±11 |
Vibration frequency |
Hz |
28 |
Nominal amplitude (high/low) |
mm |
1.9/0.95 |
Excitation force (high/low amplitude) |
kN |
274/137 |
Engine model |
Shanghai Diesel Engine D4114 |
|
Type |
Water cooled, pressurized |
Water cooled, pressurized |
Max. power |
kW |
92@2200r/min |
Engine oil consumption |
g/kW.h |
230 |
Hydraulic oil tank capacity |
L |
170 |
Fuel tank capacity |
L |
180 |
All technical parameters are subject to change without prior notice because of technical improvements.
