motor grader GR215

  • 1 - 1 Sets
    $60,000.00
  • >=2 Sets
    $59,000.00
Model Number:
GR215
Weight:
16200kg
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Forward Speed(km/h):
38
Reverse Speed(km/h):
23
Warranty:
1 year
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
ORIEMAC
Certification:
ISO9001
Dimension(L*W*H):
8971X2625X3471mm
Name:
GR215 motor grader
Engine::
Shangchai
Power:
220hp
Travelling speed ,forward:
5,8,13,20,30,42km/h
Maximum lift above ground:
410mm
Dimension:
8015X2380X3050mm
Moldboard width X height:
3710x610mm
Brand:
ORIEMAC
Origin:
China
Color:
Yellow
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
Nude packing via RORO vessel or Bulk shipment
Port
shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 To be negotiated

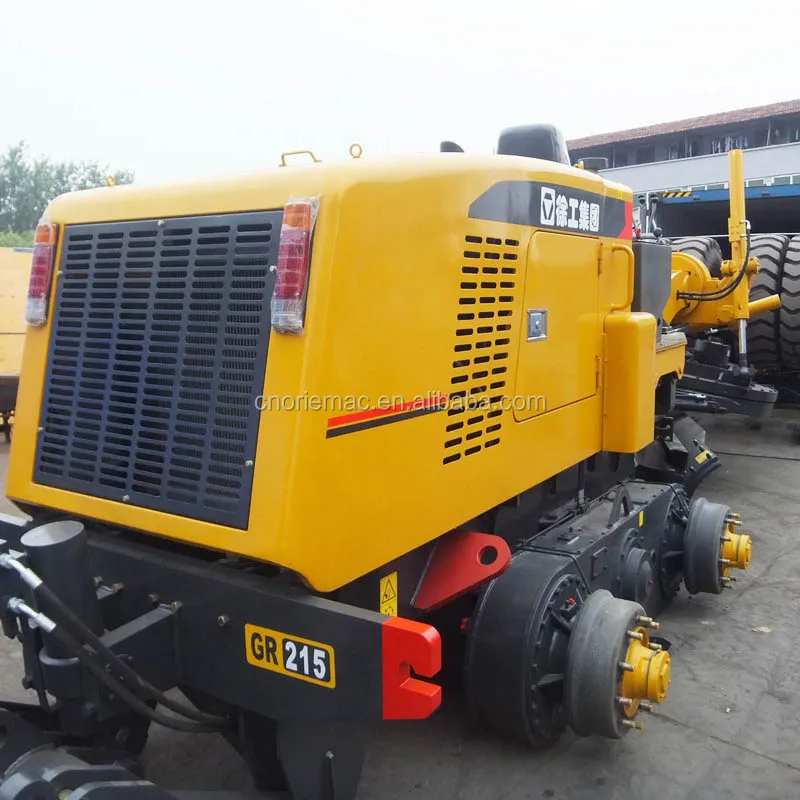

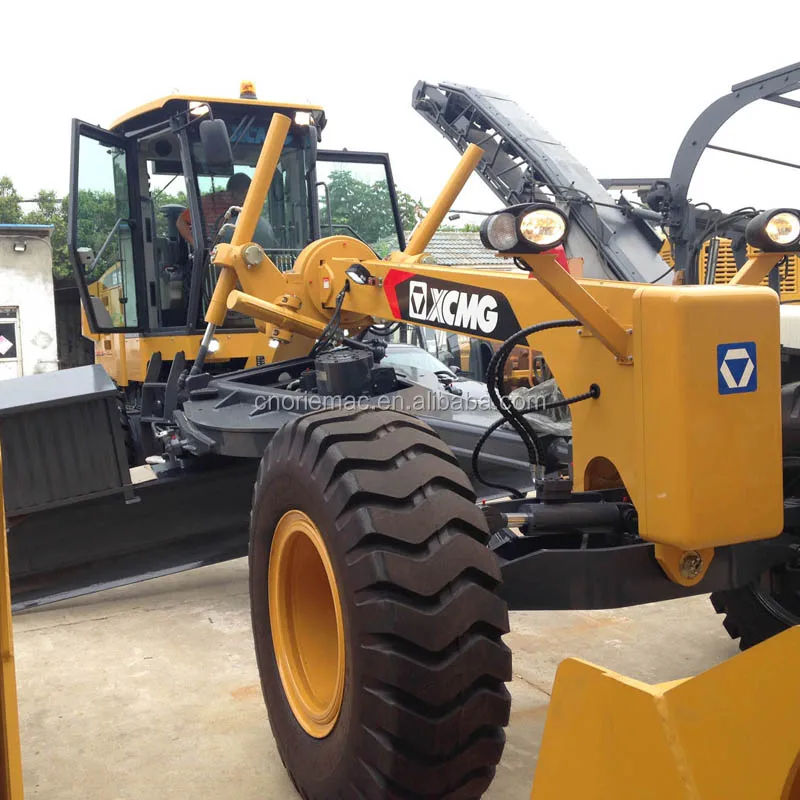

GR215 motor grader



1. Shangchai engine, 215HP
2. Hangchi transmission
Articulation frame is adopted and matched with the steering of the front wheel with small turning radius, maneuvering and flexible
Electro-hydraulic controls the power shift gearbox with 6 ahead gears and 3 back gears
International matching hydraulic parts are adopted with reliable operation
Motions of the blade are fully hydraulic controlled
Three-section driving axel is equipped with a self-locking differential mechanism
Adjustable manipulation table and seats and reasonable arrangement of manipulation handle and instrument lead to convenient application and improved comfort of driving



Basic specification
Engine model6CTAA8.3 6CTA8.3
Rated power/speed  153kW/2200rpm  160kW/2200rpm
Dimension(LxWxH)8970×2625×3470mm
Operating weight(Standard)16500kg

Performance specification

Travelling speed ,forward5,8,11,19,23,38 km/h
Travelling speed ,reverse5,11,23 km/h
Tractive force(f=0.75)82KN
Max. gradeability20%
Tire inflation pressure260 kPa
Working hydraulic pressure16 MPa
Transmission pressure1.3~1.8MPa

Operating specification

Max. steering angle of front wheels±50°
Max. lean angle of front wheels±17°
Max. oscillation angle of front axle±15°
Max. oscillation angle of balance box15
Frame articulation angle±27°
Min. turning radius using articulation7.3m
Biade
Maximum lift above ground450mm
Maximum depth of cutting500mm
Maximum blade position angle90°
Blade cutting angle28°—70°
Circle reversing rotation360°
Moldboard width X height4270×610mm



1 (2).JPG1 (3).JPG1 (4).JPG1 (5).JPG

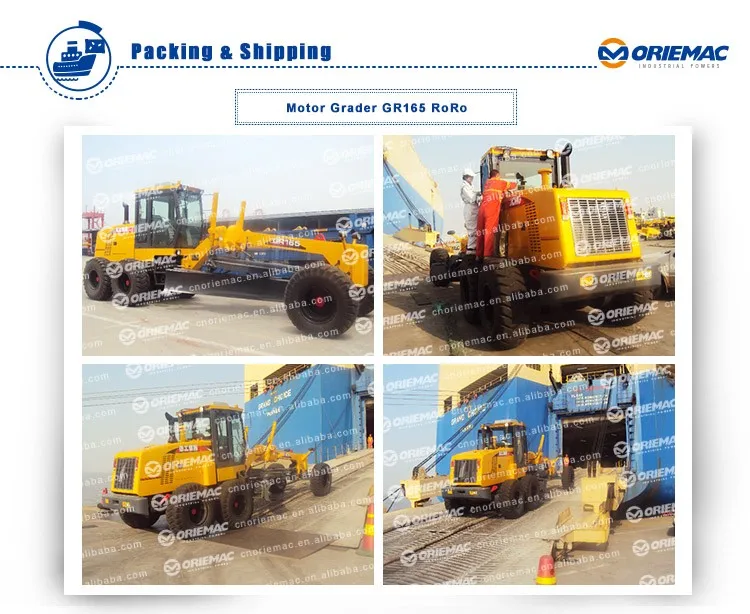

Motor Grader GR165 RoRo.jpg2.jpg3.jpg4.jpg5.jpg6.jpg7.jpg8.jpg9.jpg10.jpg11.jpg
