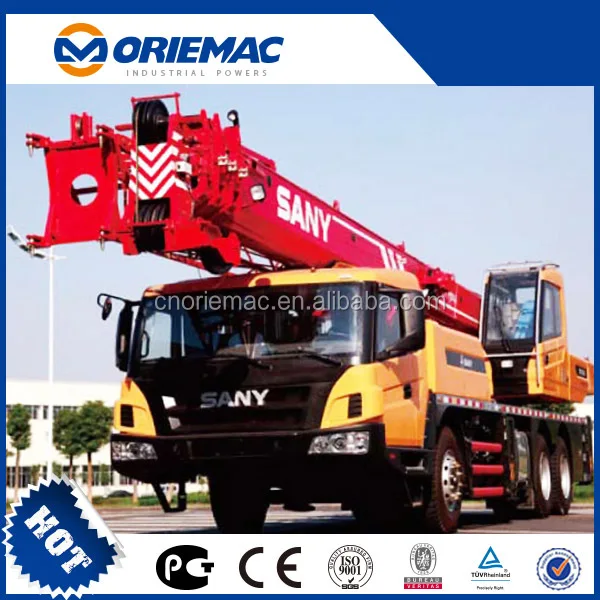

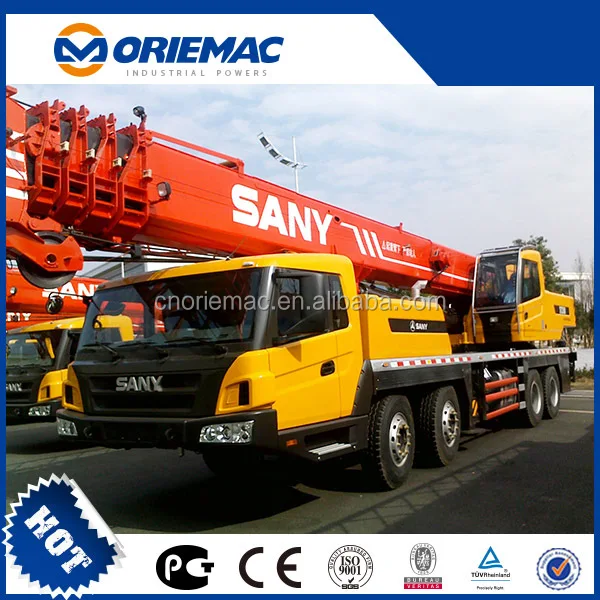

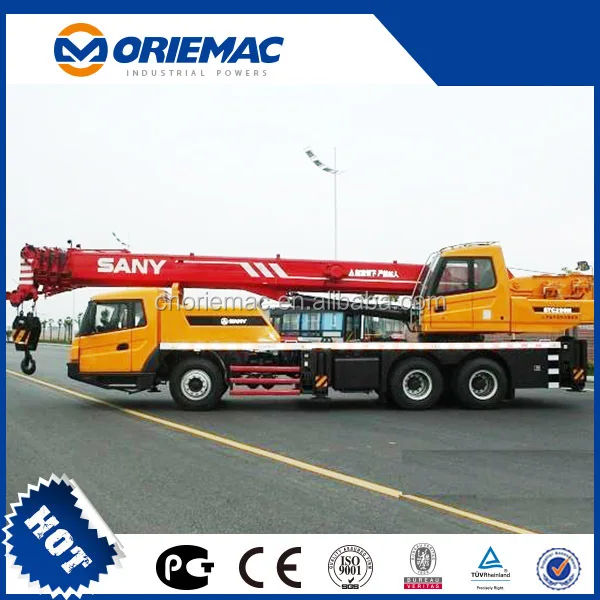

SANY 20ton truck mounted crane in dubai STC200

FOB Reference Price:Get Latest Price
$80,000.00 - $150,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Max. Lifting Height:
41.5m
Feature:
Truck Crane
Condition:
New
Place of Origin:
Hunan, China
Brand Name:
SANY
Model Number:
STC200
Certification:
ISO & CE
Application:
Construction, building and other industrial usage.
Rated Lifting Moment:
860kN.m
Max. Lifting Load:
20t
Span:
5.1*6m
Max lifting capacity:
20t
Overall weight:
26400kg
Rated power:
213kw/2100rpm
Rated torque:
1050N.m(1200-1400r/min)
Max traveling speed:
80km/h
Min turning radius:
10m
Approach angle:
18°
Base boom length:
10.6m
Full-extend boom+jib:
41.5m
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
One year
Rated Loading Capacity:
20t
Supply Ability
Supply Ability:
1000 Set/Sets per Month

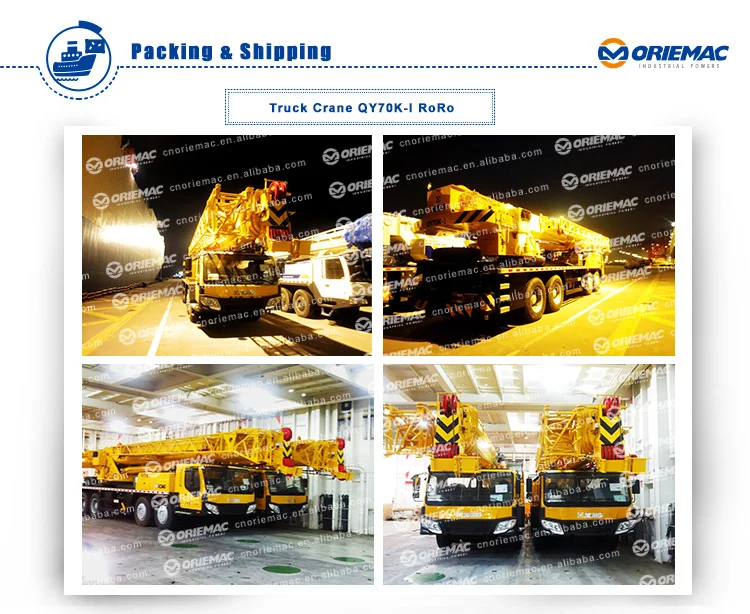

Packaging & Delivery
Packaging Details
Nude package
Port
Shanghai, Guangzhou
Lead Time :
within 5~7 days after deposit.

SANY 20ton truck mounted crane in dubai STC200

We have been long-term involving in providing high performance-cost ratio products.





Main features





Excellent and stable chassis performance /chassis system
Double-axle drive is used, providing good trafficability and comfortableness under complex road condition with reliable traveling performance.
Engine has the multimode power output function, which reduces power consumption.



Ultra long and super strong boom system
Four-section boom of high strength steel structure and optimized sexangle cross section reduces weight significantly with higher
safety rates. Jib mounting angles are 0°, 15° and 30°, which ensures fast and convenient change-over between different operating conditions so as to improving working efficiency of the machine.



Highly efficient, stable, energy-saving and adjustable hydraulic system
Triple gear pump, load feedback and constant power control are applied to provide strong lifting capacity and good micromobility.
Unique steering buffer design is applied to ensure stable braking operation.



Safe, stable, advanced, and intelligent electric control system
Self-developed controller SYMC specially for engineering machinery is configured. The adoption of CAN-bus full-digital network control technology ensures stable control signal, simple harness and high reliability. Timely feedback of data information can achieve the monitoring of the overall working status in realtime.
The load moment limiter equipped with the comprehensive intelligent protection system is used with accuracy within 3% to provide a comprehensive logic and interlock control, thus ensuring more safe and reliable operation.



Technical parameters



Max rated lifting capacity20t
Overall length12490mm
Overall width2500mm
Overall height3530mm
