SANY 38m Tuck-mounted Concrete Pump pumping machines

  • >=1 Units
    $300,000.00
Model Number:
SYG5271THB 38
Power(W):
300KW
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Dimension(L*W*H):
11410*2500*4000
Weight:
27800, 27800kg
Warranty:
1 year
Condition:
New, New brand
After-sales Service Provided:
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support, Engineers available
Place of Origin:
Beijing, China
Brand Name:
SANY
Certification:
CCC ISO9001
Power Type:
Diesel
Type:
SANY 38m Tuck-mounted Concrete Pump pumping machines
Brand:
SANY
Model:
SYG5271THB 38
Chassis:
SANY
Engine:
300kw
Emission standard:
Euro III, Euro IV
Dimension:
11410*2500*4000
Supply Ability
Supply Ability:
30 Unit/Units per Quarter
Packaging & Delivery
Packaging Details
N/A
Port
Shanghai, Tianjin, Qingdao
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Product Description

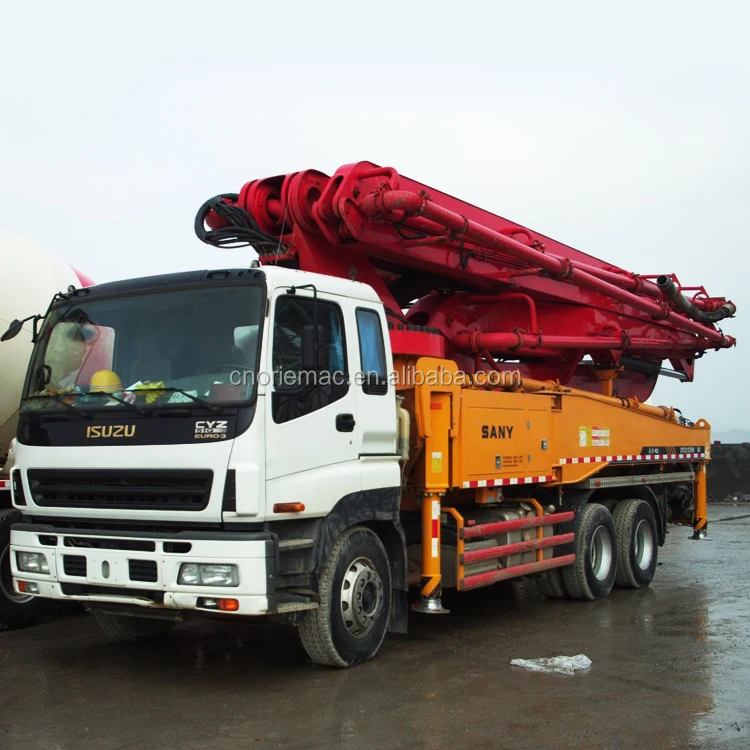

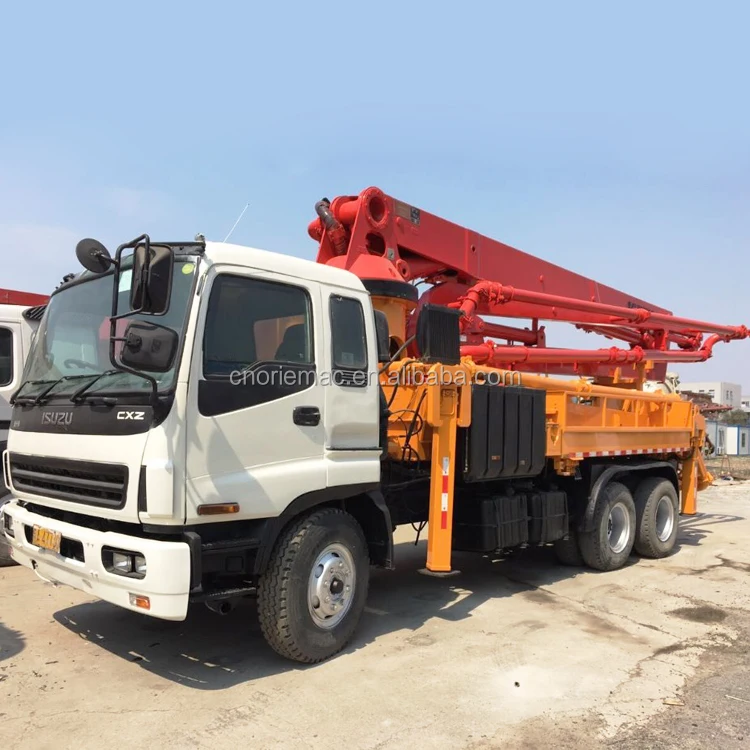

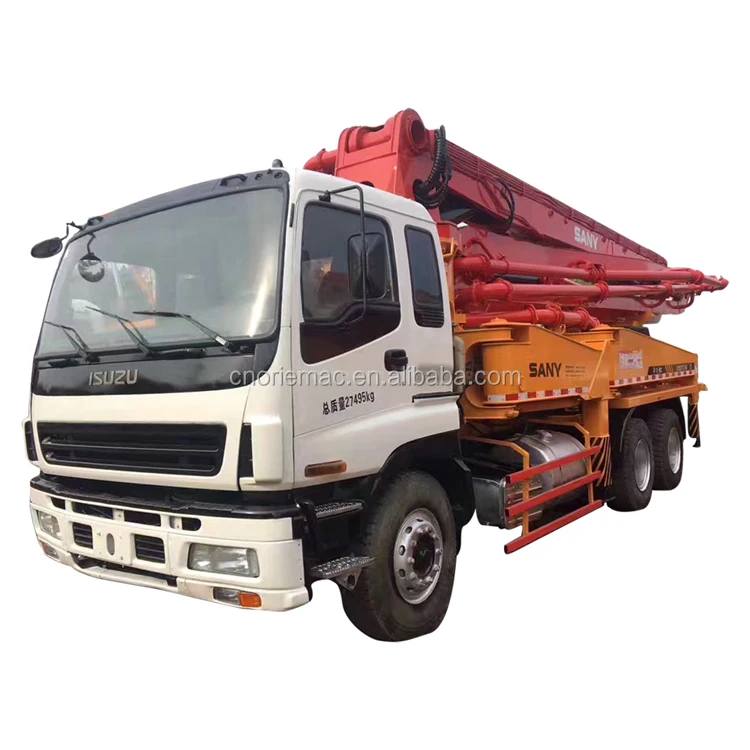

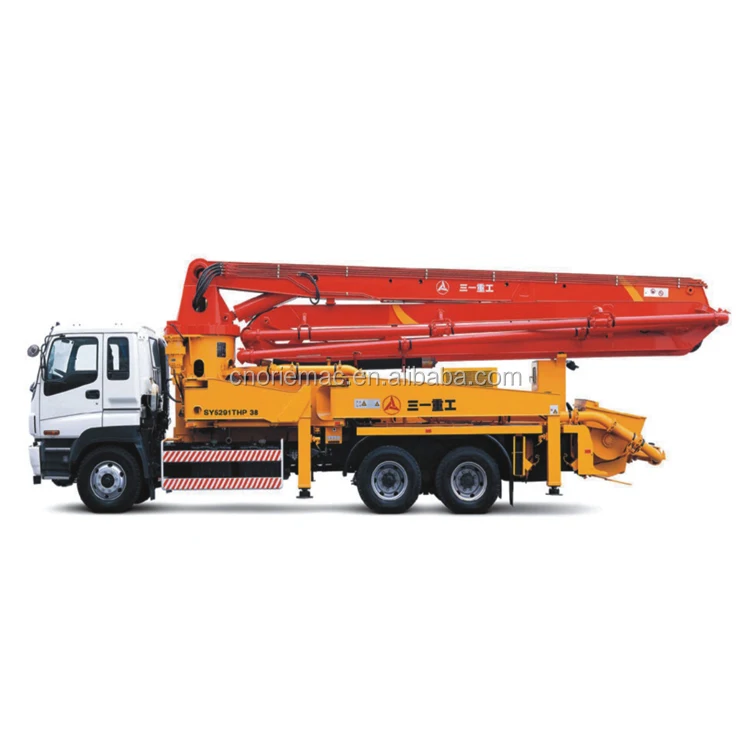

SANY 38m Tuck-mounted Concrete Pump pumping machines



ONE BUTTON STABILIZATION TECHNOLOGY
No matter how much vibration the boom incurs after being moved, only one button can make the boom stop steadily and immediately. Meanwhile, the terminal hose will exercise quick and precise positioning.
BOOM ANTI-VIBRATION TECHNOLOGY
Effectively mitigate the boom jittering during the pumping process, with amplitude of vibration decreasing by 50%, and the terminal hose is running steadily.
ENERGY-SAVING TECHNOLOGY
With reversing times hitting 29 times/minute (when the system pressure is 12MPa). Pumping efficiency, an increase of up to 25%, and fuel consumption, a decline of up to 10%.
ANTI-SWING CONTROL TECHNOLOGY
Adopt the brand-new rotary braking technology, and the boom’s rotary swing amplitude decreases by 60%, which helps realize unprecedented precise braking.
HIGH WEAR-RESISTING PARTS
Greatly improve the performance, create more values for you.
Delivery pipe
Straight tube, hinged elbow, and, large elbow, and small elbow all adopt the double-layer compound structure. Inner layer is extremely wear resistant, with service life hitting 50,000 m3.
Discharge port / transition bushing
Adopt the double-layer compound structure, of which, the inner bushingis made of special steel whose wear resistance is 15 times that of ordinary steel, with service life hitting 60,000 to 80,000 m3.
Concrete piston
Ttakes rubber as the substrate, and on its exterior layer there is compound wear-resisting fabric, which is extremely resistant to pressure, heat, and abrasion, and applicable to different severe working conditions, with service life hitting 25,000 to 30,000 m3.
Wear plate/cutting ring
Adopt special inlaying process, with connecting strength surpassing 100MPa. Of which, the wear plate’s service life is up to 50,000 to 60,000 m3, and the cutting ring’s service life hits 20,000 to 30,000 m3.
Delivery cylinder
The inner layer is plated with chrome with thickness of above 0.3mm,and so its hardness exceeds HV900, with service life hitting 100,000 to 140,000 m3.
FAULT SELF-DIAGNOSIS TECHNOLOGY
Monitor the equipment status at any time, and monitor and diagnose more than 200 faults in real time, shorten the troubleshooting time by 70%, and save the time and trouble for you.
SMART BOOM SYSTEM
People-oriented intelligence and sophisticated technology make the truck-mounted concrete
pump operation more human-centric and convenient.
One-button boom extension and retraction
One-button extendable arm pushes upwards or downwards the automatic arm switch to extend or retract the boom automatically.
Limit the operation height
In the event of indoor construction or outdoor construction with upper obstacle, this function can effectively prevent the boom from touching the top and suffering damage.
Locate the boom posture
Easily locate the first and second section’s position, and greatly simplify the boom operation.
SECURITY TECHNOLOGY
C8 Series Truck-mounted Concrete Pump perfectly construes the precise and rigorous manufacturing philosophy and uncompromising safety standard.
Boom overload protection technology
Safety valve device is additionally mounted in the boom cylinder balance valve.
In the event of excessive boom load, overload oil pressure will be automatically released, in order to prevent the boom from suffering damage.
Hopper sifter linkage protection technology
When the hopper screen is opened, the operating device in the hopper will automatically stop, so as to ensure the operation safety.
Hydraulic oil level automatic inspection and protection technology
Monitor the hydraulic oil’s reserve in real time. In the event of insufficient oil volume, alarm will be automatically sent or pumping will be stopped, as a way to prevent the hydraulic system from suffering damage.







ITEMSYG5271THB 38
Lengthmm114101138011510
Widthmm250025002500
Heightmm400039904000
Dead weightkg278002750028300
