ZOOMLION Brand 50ton QY50V532 Truck Crane

FOB Reference Price:Get Latest Price
$120,000.00 - $150,000.00 / Unit | 1 Unit/Units (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Max. Lifting Height:
58.3m
Condition:
New
Place of Origin:
Hunan, China
Brand Name:
ZOOMLION
Model Number:
QY50V532
Certification:
ISO9001
Application:
construction
Rated Lifting Moment:
1764kN.m
Max. Lifting Load:
50t
Span:
5.92m
Color:
white
Engine model:
WP10.336
Rated power:
247kw
Dimension:
13300*2750*3650mm
Max. traveling speed:
76km/h
Gradeability:
32%
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1YEAR
Rated Loading Capacity:
50t
Supply Ability
Supply Ability:
100 Unit/Units per Month
Packaging & Delivery
Packaging Details
nude packing
Port
Shanghai
Lead Time :
15 days

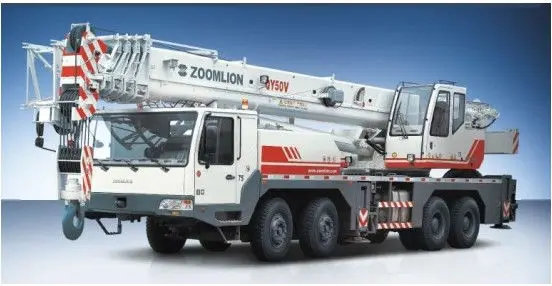

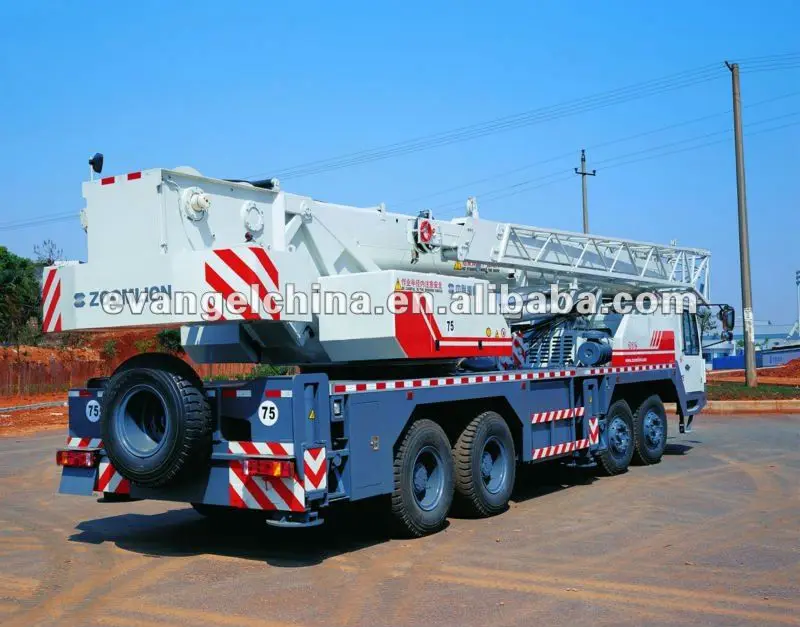

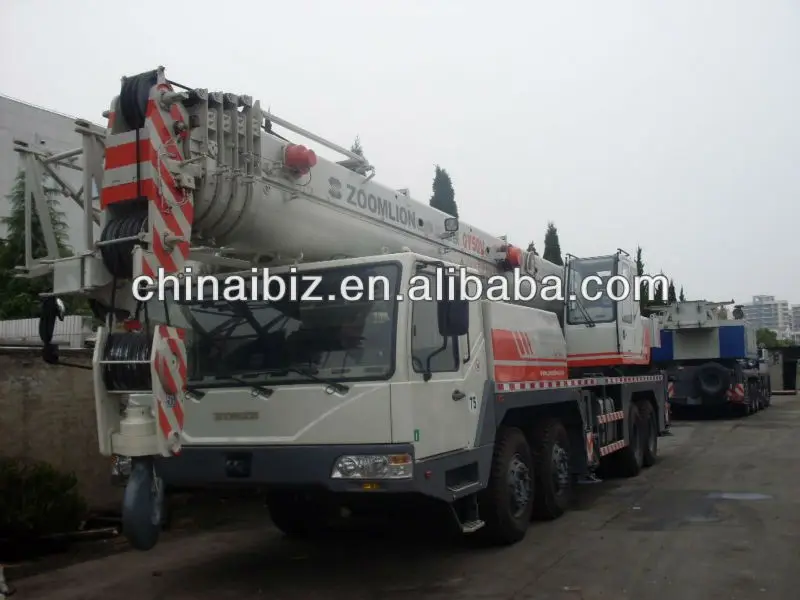

ZOOMLION QY50V532 Truck Crane



QY50V532 truck crane, which is developed independently to adapt to the market demands, is a new-generation and high-performance product integrating our company many years’ manufacturing experience with advanced technologies. Its performances such as lifting height, boom length, working speed and lifting capacity have achieved advanced international level.

The truck crane, with spacious cab and luxurious equipments, adopts full slewing system, telescopic boom, hydraulic proportional control system and self-made full-width special purpose chassis with four axles. 8×4 drive and hydraulic power steering mechanism provides the crane with good driving performance and flexible steering.

The system with latest load feedback hydraulic operated proportional directional control valve and quadruple gear pump, and the safety devices fitted in hydraulic system, such as relief valve, balance valve, hydraulic lock and brake valve etc., prevents the oil line from overloading and the accidents caused by oil pipe breakage to makes full use of the working capacity of each actuating mechanism. Thus the reliability and safety of the crane are increased.

The safety devices such as load moment limiter, and the complete lighting system equipped in the crane ensure your safety during operation and are convenient for night work.

This crane has a novel style which makes it beautiful in figure, in form and in color.






Parameter



Item

Value

Remarks

Working performance specification

Max. rated total lifting capacity kg

50000



Max. load moment of basic boom kN.m

1764

1470(Outrigger beam half extended)

Max. load moment with max. main boom length kN.m

940.8

793.8(Outrigger beam half extended)

Max. lifting height of basic boom m

11.6



Max. lifting height of main boom m

42.1

Deformation of boom is not taken into consideration

Max. lifting height of fly jib m

58.3

Working speed

Max. speed of single rope on main winch m/min

130

The 4th layer of drum

Max. speed of single rope onauxiliary winch m/min

72

The 2nd layer of drum

Derricking time of boom s

50



Telescopic time of boom s

95



Slewing speed r/min

0~2



Traveling specification

Max. traveling speed km/h

76



Max. gradeability %

32



Min. turning circle diameter m

24



Min. ground clearance mm

260



Limits for exhaust pollutants and smoke

Comply with related standards

GB3847-2005

GB17691-2005

(Stage)

Oil consumption per hundred kilometers L

48



Mass specification

Deadweight of crane in traveling condition kg

41000



Complete vehicle kerb mass kg

40470



Front axle load kg

17200



Rear axle load kg

23800



Dimension specification

Overall dimensions(L×W×H)mm

mm

13300×2750×3650



Base on outriggers m

5.92



Distance between outriggers m

6.90



Main boom length m

11.1~42.0



Main boom angle°

-2~80



Fly jib length m

9.5, 16



Offset angle of fly jib°

0 , 30



Chassis

Model

ZLJ5414



Class



Engine

Model

WP10.336

QSL 325

Rated power KW/r/min

247/2200

242/2200

Max. output torque N.m/r/min

1250/1200~1600

1424/1500
