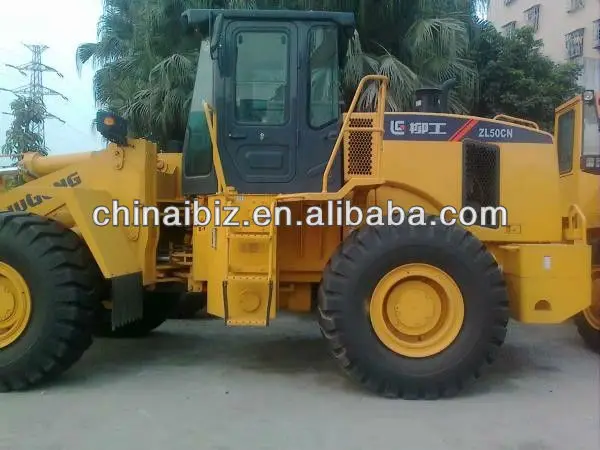

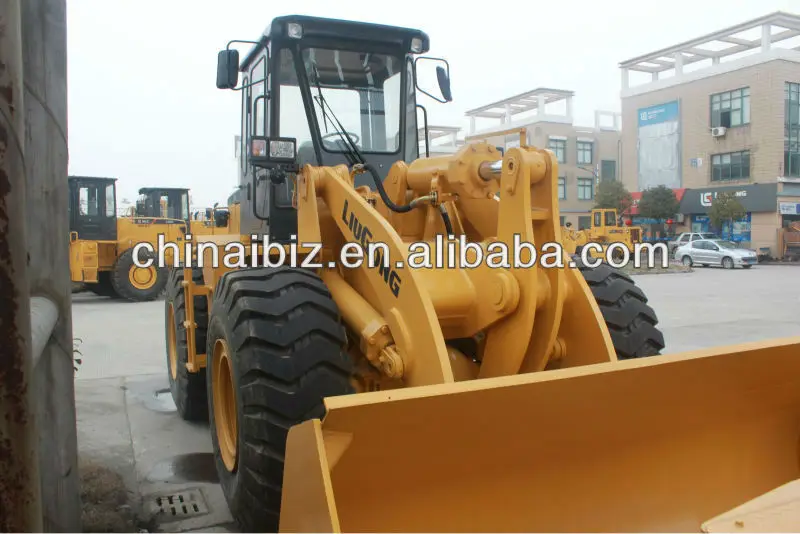

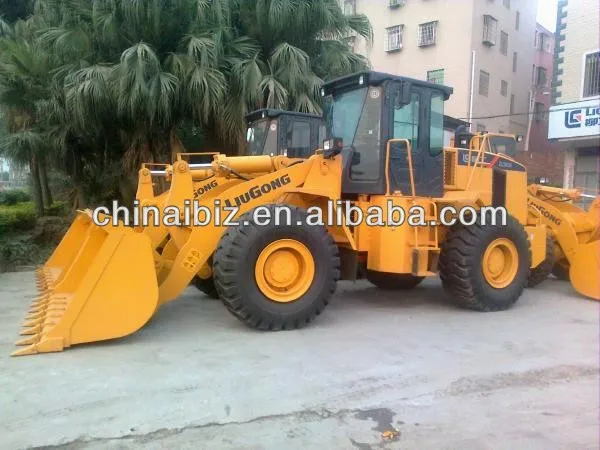

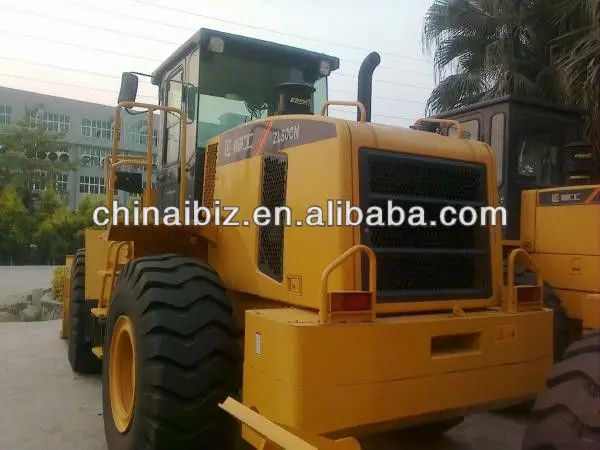

5Ton LiuGong ZL50CN wheel loader

FOB Reference Price:Get Latest Price
$40,000.00 - $50,000.00 / Unit | 1 Unit/Units (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Dimension(Long * Breadth * High):
8030*2750*3427mm
Condition:
New
Place of Origin:
Guangxi, China
Brand Name:
LIUGONG
Model Number:
ZL50CN
Certification:
ISO9001
Type:
Front Loader
Moving Type:
Wheel Loader
Color:
operable
Bucket capacity:
3m3
Rated load:
5ton
Engine model:
Weichai
Rated power:
162kw
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1YEAR
Rated Load:
5ton
Supply Ability
Supply Ability:
100 Unit/Units per Month
Packaging & Delivery
Packaging Details
nude packing
Port
Shanghai
Lead Time :
15 days


LiuGong ZL50CN 5ton wheel loader:

1.LiuGong wheel loader
2.Bucket capacity 3cbm
3.Rated load 5000kg
4.operating weight 16500kg
5.162kw weichai engine



Bucket capacity

3.0m3

Rated Load

5000kg

Operating weight

16000kg

Torque ratio

2.55

Transmission

Type

conunter shaft-type power shit,semi-automatic

Pressure of transmission

1.6~1.8MPa

Brake

Driving brake

caliper discs,air hydraulic actuated on al four wheel

Parking brake

shoe brake, applied by manually/air control

Emergency brake

using parking brake,applied by air pressure control

Maximum oil pressure

12.3 Mpa

Major reducer

type

spiral bevel,1-stage reduction

speed ratio

4.625

Engine

Rated Power

162kw/2000r/min

Model

WD10G220E23

Type

water-coded,l-arrangement,direct injection,4-stroke diesel engine

Number of cylinder

6

Bore × stroke

121×150mm

Displacement

9.056L

Max.torque

920N.m

Governor

centrifugal all speed governor

Coding system

forced circulation by centrifugal pump pusher type fan
