Changlin Road Roller Vibrator YZ16-7

FOB Reference Price:Get Latest Price
$35,000.00 - $45,000.00 / Unit | 1 Unit/Units (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Power(W):
128kw
Travel Speed:
10.5km/h
Static Linear Pressure:
474N/cm
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
CHANGLIN
Model Number:
YZ16-7
Certification:
ISO9001
Type:
Single Drum Roller
Dimension(L*W*H):
6058* 2380* 3100mm
Grade Ability:
40
Color:
Yellow
Weight:
16000KG
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
500 Unit/Units per Month
Packaging & Delivery
Packaging Details
NUDE PACKING
Port
SHANGHAI
Lead Time :
1 WEEK

Changlin Road Roller Vibrator YZ16-7



Overall Dimension

1

Length

6058mm

2

Width(to outside of wheels)

2380mm

3

Height(To the top of the cab)

3100mm

4

Wheel base

3100mm

5

Tread

1645mm

6

Min. ground clearance

430mm

Main Technical Specification

1

Static line force

368N/cm

2

Dynamic line force

1380 N/cm

3

Operating weight

16000kg

4

Nominal Amplitude high Nominal Amplitudelow

1.87mm 1.0mm

5

Centrifugal-Force high Centrifugal-Forcelow

294kN 179kN

6

Total stress force

46000(kg)

7

Static Weight at Drum

8000kg

8

Static Weight at Tires

8000kg

9

Frequency

30/33Hz

10

Min. turning radius(Outside of rear wheel)

6600mm

11

Drum diameter

1580mm

12

Drum width

2130mm

13

Drum thickness

30mm

14

Traveling speed(Km/h),3 forward and 3 reverse



(1) 1st gear forwardreverse

2.52

(2) 2nd gear forwardreverse

5.9

(3) 3rd gear reversereverse

12.36

Diesel engine

1

Model

Chinese Engine D6114ZG2B

2

Type

Direct injection. Turbocharged. Water cooling

3

Rated output

128 kW

4

Inter-bore of cylinder/stroke

114 (mm)

5

Total exhaust of cylinder

8.3 (L)

6

Model of start motor

QD285KS

7

Power of start motor

7.5(KW)

8

Voltage of starting motor

24(V)

9

Rated speed

2000(r/min)

10

Max. Torque

625(N.M)

11

Starting type

Electric

12

Min. specific fuel consumption

226(g/Kw.h)

13

Net weight

700(kg)

Transmission System

1. Transmission case

1

Model

BJ10.003.107

2

Main clutch

License JCL380

3

Type

Mechanical shift

4

Gear shift position

3 Forward and 3 reverse gears

2. Axle and Tire

1

Type of main reducer

spiral bevel gear, single stage

2

Gear ratio of main reducer

5.286

3

Type of final reducer

Single stage planetary

4

Gear of ratio of final reducer

4.4

5

Gear ratio

23.2584

6

Size of tire

23.1-26-14PR

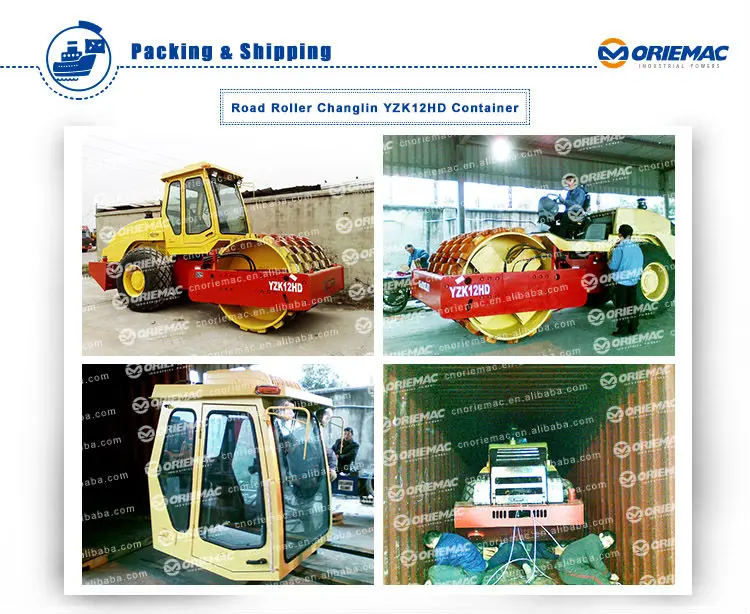

YL16-7s.jpg Road Roller Changlin YZK12HD Container.jpg2.jpg3.jpg4.jpg5.jpg6.jpg7.jpg8.jpg9.jpg10.jpg11.jpg
